Push's Foot Pedal Ports
- Live Versions: 9
- Operating System: ALL

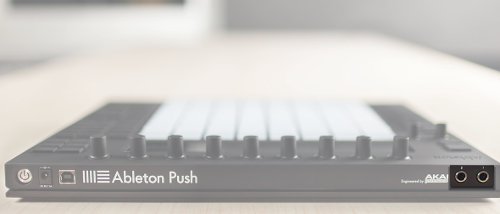

Push has 2 ports on the back for foot pedals
Push has two foot pedal ports, the first port is for sustain, the second allows for Looper-style control over clip recording: A single tap triggers Push's record button. A double-tap triggers Push's "New" button.

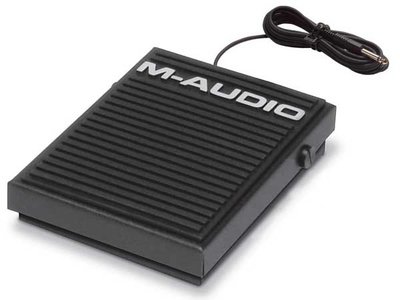

Use a footswitch with "normal" polarity with Push
It is recommend to use a foot pedal with "normal" polarity with Push. In other words, (using sustain as an example) depressing the pedal will sustain a note, releasing it will stop sustaining.
This is the opposite to "reversed" polarity where depressing the pedal will turn off sustain.
If you have a pedal with "reversed" polarity, often holding down the pedal while plugging in the cable, will swap between "normal" and "reversed" polarity, however we recommend checking your accompanying foot pedal manual to clarify this.
MIDI-Mapping the Second Foot Pedal
When Push is in User Mode (and the MIDI Preferences have been properly configured), the second foot pedal can be freely MIDI-mapped.
See also: Working with Foot Pedals
